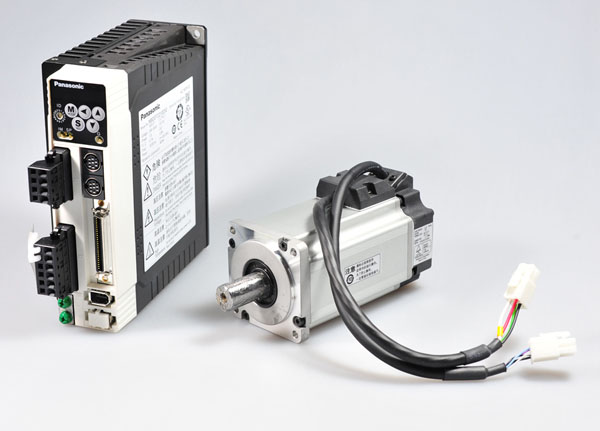

Panasonnic Function Servomotor Drive Kit 400W 3000rpm 1.3NM Control MHMJ042G1U
3-Step gain
A 3-step gain switch is available in addition to the normal gain switch.This chooses appropriate gain tunings at both stopping and running. The 3-step gain switch gives you choices of 3 different tunings for normal running, stopping for faster positioning and at stopping. The right gaining tunings achieve lower vibration and quicker positioning time of your application.
Specifications:
Categories Motors, Solenoids, Driver Boards/Modules
Motors - AC, DC
Manufacturer Panasonic Industrial Automation Sales
Series MINAS A5
Part Status Active
Type AC Motor
Function Servomotor
Motor Type -
Voltage - Rated 200VAC
RPM 3000 RPM
Torque - Rated (oz-in / mNm) 184.1 / 1300
Power - Rated 400W
Encoder Type Incremental
Size / Dimension Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Diameter - Shaft 0.551" (14.00mm)
Length - Shaft and Bearing 1.181" (30.00mm)
Mounting Hole Spacing 2.756" (70.00mm)
Termination Style Wire Leads
Features Key, Oil Seal
Gear Reduction Ratio -
Torque - Max Momentary (oz-in / mNm) 538.1 / 3800
Operating Temperature 0°C ~ 40°C
Approvals CE, CSA, cULus, TUV, UL
Weight 3.1 lbs (1.4kg)
Product Details
Panasonic A-Series Motor
Manufacturer: Panasonic
Series: A-Series
Shipping and Order Information
TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
Shipping options vary by location. Call for an accurate quote.
Warranty
The MHMJ042G1U comes with a 1 year warranty.
MUMA5AZP1S, MUMA5AZP1T, MUMA012P1S, MUMA012P1T, MUMA022P1S, MUMA022P1T, MUMA042P1S, MUMA042P1T, MHMJ042P1U, MHMD042G1U, MHMJ082P1U, MHMD082G1U, MSME082G1V, MHMJ102P1G, MDME102GCGM, MDME152GCGM, MDME202GCGM, MADHT1505, MADKT1505CA1, MBDJT2207, MADHT1507CA1, MADKT1507CA1, MBDJT2210, MBDHT2510, MBDKT2510CA1, MCDHT3520, MCDKT3520CA1, MCDJT3220, MCDJT3230, MDDHT3530, MDDKT3530CA1, MDDHT5540, MDDKT5540CA1, MEDHT7364, MEDKT7364CA1, MFDHTA390, MFDKTA390CA1, MFDHTB3A2, MFDKTB3A2CA1, MGDHTC3B4, MGDKTC3B4CA1, MHDHTC3B4, MHDKTC3B4CA1 MDME302GCGM, MDME402GCGM, MDME502GCGM
Inertia ratio conversion
You can adjust right inertia ratio by Inertia ratio conversion input (J-SEL) of interface. When you have significant load inertia changes, it can adjust unbalanced speed and position gain turning combination. lt ends up quicker response of your system.
