GE FANUC Current 12 Channel IC200ALG328 GE VersaMax Analog Output Module

  • 1
  • 2

Brand Name : GE

Model Number : IC200ALG328

Place of Origin : USA

MOQ : 1

Price : negotiable

Payment Terms : T/T

Supply Ability : 50

Delivery Time : 5-8 work days

Packaging Details : New in original box

Brand : GE

Model : IC200ALG328

Origin : USA

Packing : Carton

Type : Industrial Servo Motor

Lead time : 5-8 work days

Contact Now

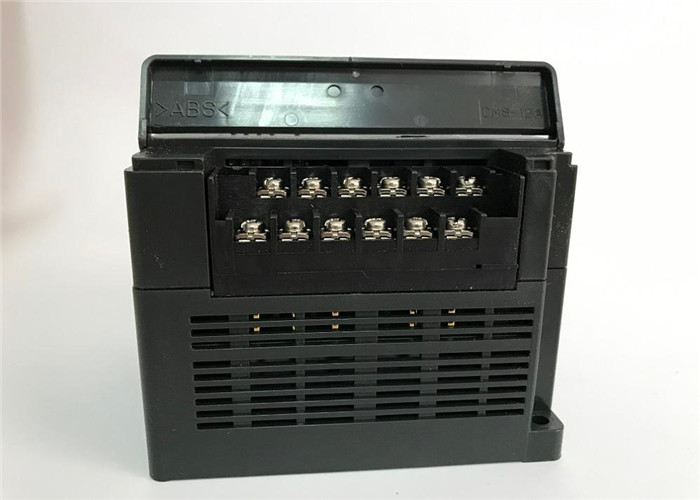

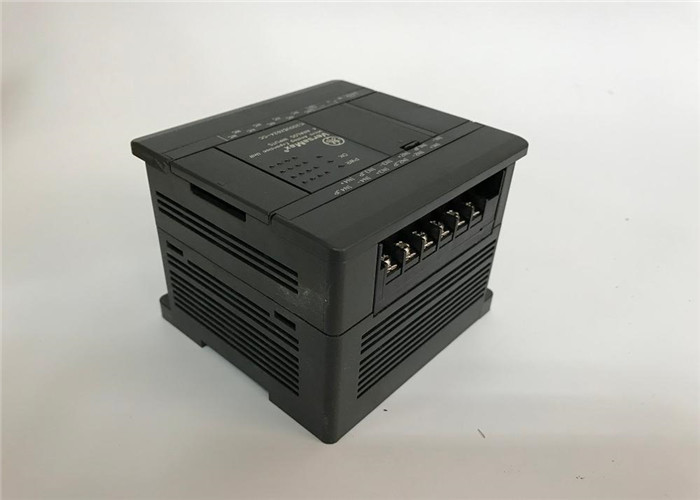

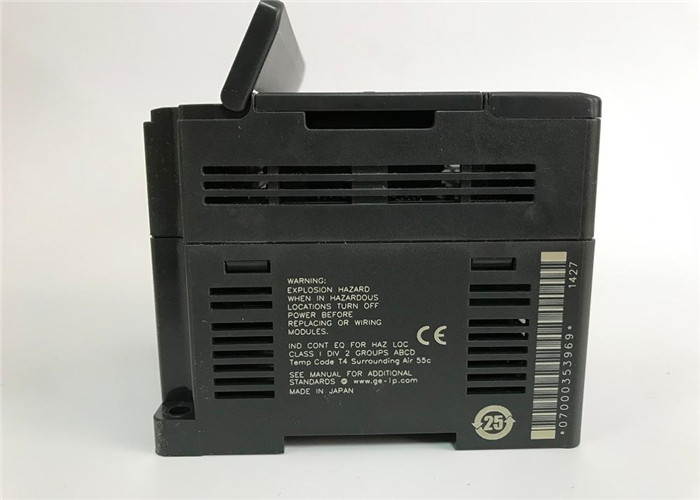

GE VersaMax Micro Analog Expansion Unit PLC IC200ALG328

Display:

GE FANUC Current 12 Channel IC200ALG328 GE VersaMax Analog Output ModuleGE FANUC Current 12 Channel IC200ALG328 GE VersaMax Analog Output ModuleGE FANUC Current 12 Channel IC200ALG328 GE VersaMax Analog Output Module

Analog Output Modules:


Analog output modules provide voltage or current signals to analog output devices . Modules require a
carrier base (IC200CHSxxx) .

IC200ALG325 IC200ALG326 IC200ALG327 IC200ALG328 IC200ALG331
Product Name VersaMax Analog Output
Module, 13 Bit ±10 VDC or 0 to
10 VDC Voltage, 8 Channel
VersaMax Analog Output
Module, 13 Bit Current,
8 Channel
VersaMax Analog Output
Module, 13 Bit ±10 VDC
or 0 to 10 VDC Voltage,
12 Channel
VersaMax Analog Output
Module, 13 Bit, 0 - 20
mA, 4-20 mA Current, 12
Channel
VersaMax Analog Output
Module, 14 Bit Voltage/
Current 1500 VAC
Isolation, 4 Channel
Lifecycle Status Active Active Active Active Active
Output Range ±10 VDC or 0 to 10 VDC 4 to 20 mA (default)
0 to 20 mA (configured
with jumper)
±10 VDC or 0 to 10 VDC 4 to 20 mA (default)
0 to 20 mA (configured
with jumper)
±10 VDC, 4-20 mA
Number of Channels 8 8 12 12 single ended, one group 4
External Power Supply Range: 18-30 VDC
including ripple;
Current consumption:
102 mA maximum
Range: 18-30 VDC
including ripple;
2A inrush maximum,
100 mA maximum
(no load), 185 mA
maximum (all 8
outputs at full scale)
Range: 18-30 VDC
including ripple;
Current consumption:
112 mA maximum
Range: 18-30 VDC
including ripple;
Current consumption:
2A inrush maximum
100 mA maximum (no load)
270 mA maximum
(all 12 outputs at full scale)
Range: 19 .5-30 VDC
including ripple;
Current consumption:
100 mA maximum
plus load currents
Resolution 1 .25 mV = 4 counts 4-20 mA: 5 counts =
2 .5 uA (~12 .7 bits) 0-20 mA:
4 counts = 2 .5 uA (13 bits)
1 .25 mV = 4 counts 4-20 mA: 5 counts =
2 .5 uA (~12 .7 bits) 0-20 mA:
4 counts = 2 .5 uA (13 bits)
Current mode: 381 nA
nominal Voltage mode: 381
µV nominal
Update Rate 15 .0 ms maximum 15 .0 ms maximum 10 .0 ms maximum 15 ms maximum 7 ms maximum
Accuracy at 25¢XC ±0 .3% typical of full scale,
±0 .5% maximum of full scale
±0 .3% of full scale (typical),
±0 .5% of full scale (max .)
±1% of full scale (max .)
±0 .3% typical of full scale,
±0 .5% maximum of
full scale
+/- 0 .3% of full scale
(typical),
+/- 0 .5% of full scale (max .)
+/-1% of full scale (max .)
±0 .1% maximum of
full scale
5V Backplane Current
Consumption (mA)
50 maximum 50 maximum 50 maximum 50 maximum 10 maximum
3 .3V Backplane Current
Consumption (mA)
N/A N/A N/A N/A 115 maximum
LED Indicators FLD PWR LED indicates
field power is present .
OK LED indicates backplane
power is present
FLD PWR LED indicates
field power is present .
OK LED indicates backplane
power is present .
FLD PWR LED indicates
field power is present .
OK LED indicates backplane
power is present .
FLD PWR LED indicates
field power is present .
OK LED indicates backplane
power is present .
FLD PWR LED indicates
the presence of both logic
power and user power .
OK LED indicates
module status
Dimensions (W x H x D) 110 mm (4 .3 in) x
66 .8 mm (2 .63 in) x 50 mm
(1 .956 in), not including the
height of the carrier or the
mating connectors
110 mm (4 .3 in) x
66 .8 mm (2 .63 in) x 50 mm
(1 .956 in), not including the
height of the carrier or the
mating connectors
110 mm (4 .3 in) x
66 .8 mm (2 .63 in) x 50 mm
(1 .956 in), not including the
height of the carrier or the
mating connectors
110 mm (4 .3 in) x
66 .8 mm (2 .63 in) x 50 mm
(1 .956 in), not including the
height of the carrier or the
mating connectors
110 mm (4 .3 in) x
66 .8 mm (2 .63 in) x 50 mm
(1 .956 in), not including the
height of the carrier or the
mating connectors

Warranty:

All items new and original , 15 months warranty .

Any inquiries will be replied within 1 hour ,before we send out the goods,

we check them more than three times.

Payment ways:

We accept TT Bank transfer , West Union ,Paypal etc.

Leadtime Our Advantage:

1-3 work days delievery time after confirmed Payment
